Maximum Values:
Maximum Altitude = 12966.94 ft
Maximum Velocity = 1375.93 ft/s
Maximum Acceleration = 438.93 ft/s

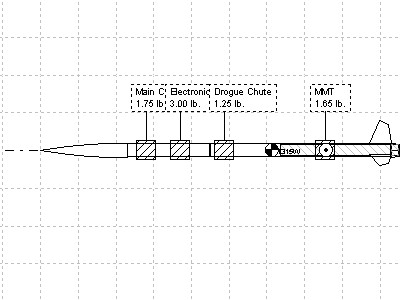

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech M1315W (12.44 lb.)
Download link: RCDPFlash-M.roc
|
Description:
Level 3 Certification rocket.
Airframe is custom 0.094 inch Carbon Fiber tube and fins are 0.094 inch graphite plate from Aerospace Composite Products. Nose cone is ScotGlas affixed to a custom-machined aluminum coupler and removable bulkhead. Future GPS electronics will mount in the nose.
Avionics section is a Hawk Mountain fiberglass coupler with G10 bulkheads.
Avionics are two (2) PerfectFlite MAWDs with mach delay set at 10 seconds and main deployment at 700 feet. Parachutes are Rocketman R24D drogue and 2 R7Cs for mains.
|
