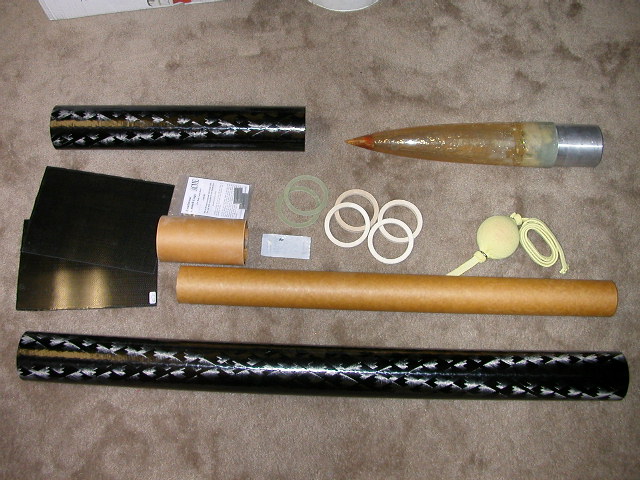

all of the parts are laid out
|
cutting the fin pattern out of cardboard I will use for my jig
|
slotted CF tube with radial-arm saw
|

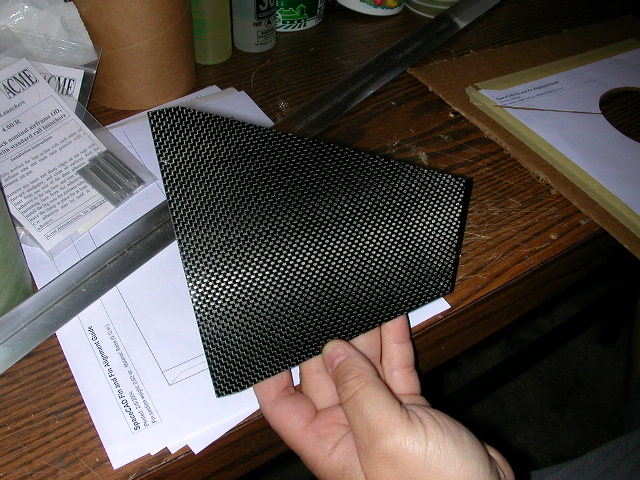

fins cut from plate with radial-arm saw
|

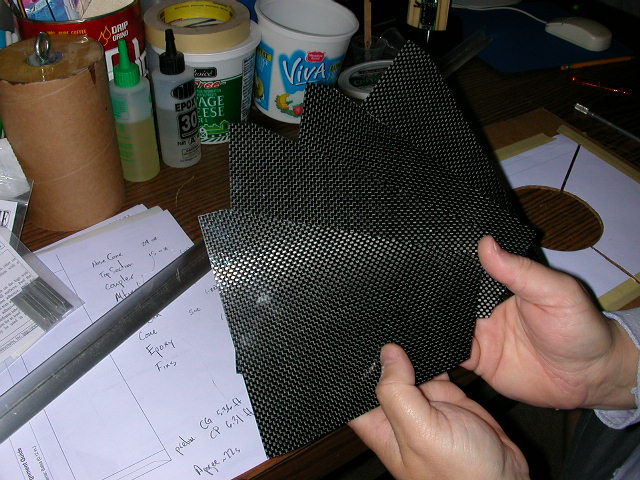

four-of-a-kind
|

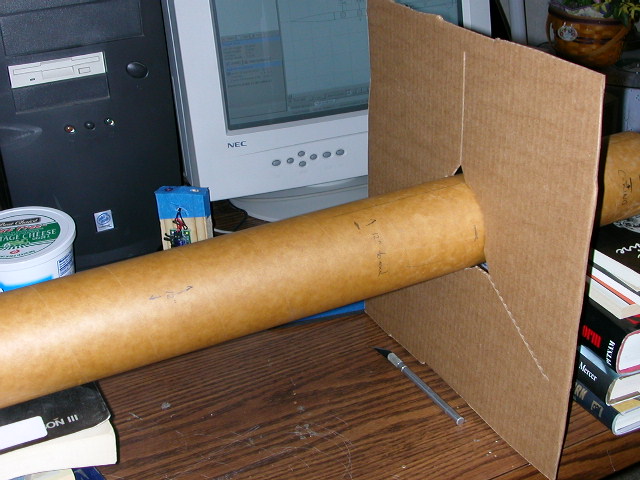

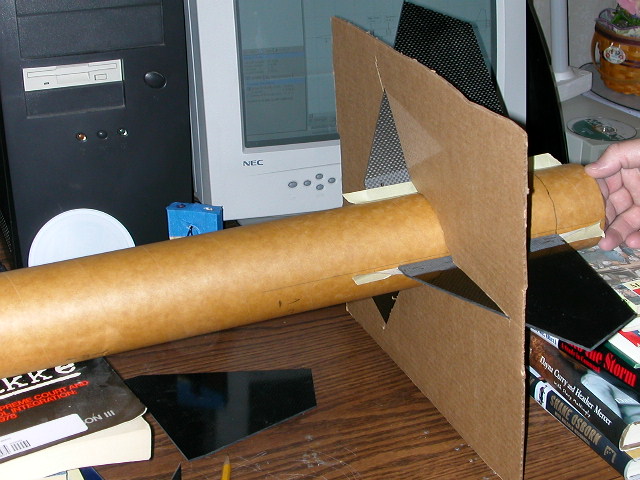

jig with motor tube
|

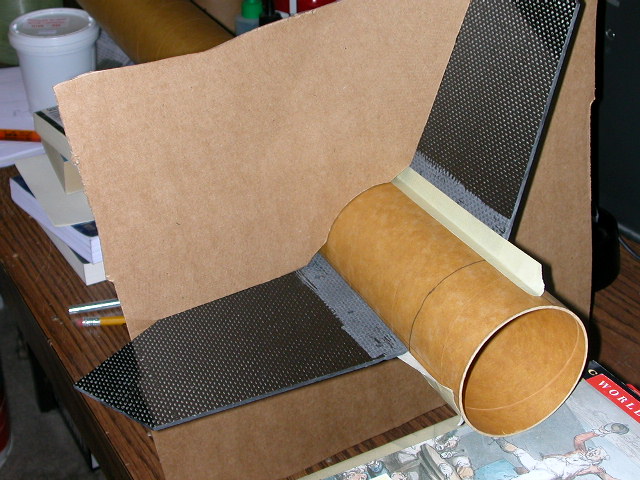

fins taped to mmt
|

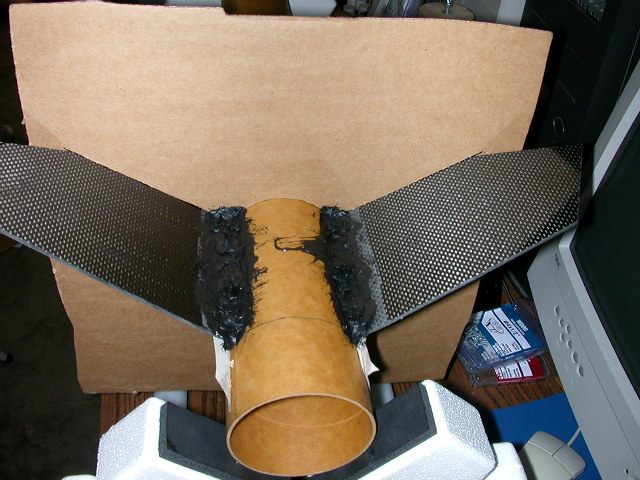

waiting for epoxy
|
Cotronics Duralco 4525 with chopped CF
|

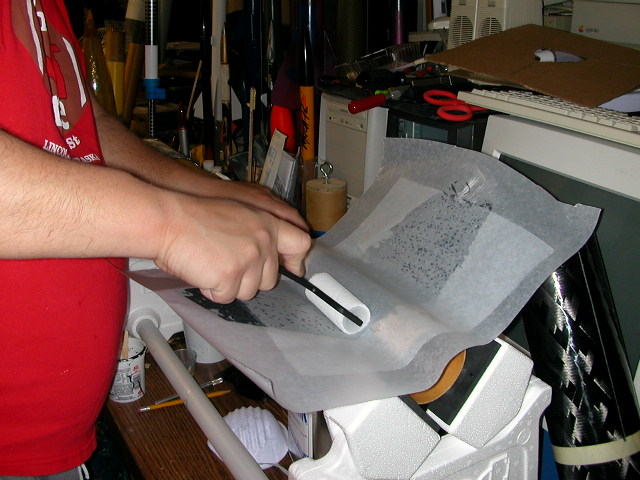

using paint roller to squeegee CF to fins
|

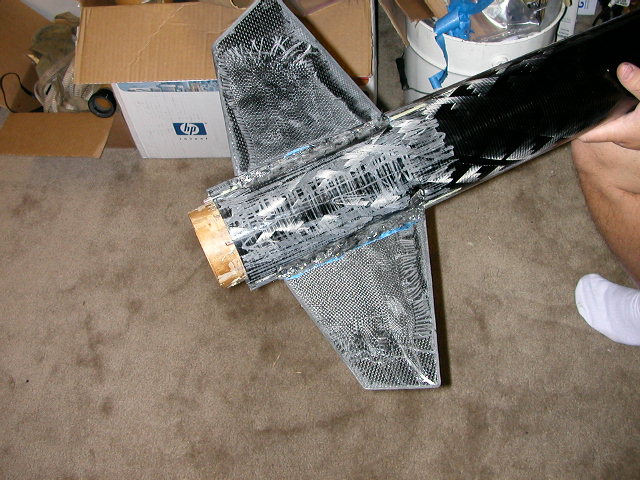

used 80/20 CF/s-glass (4.7 oz) and EZ-Lam
|

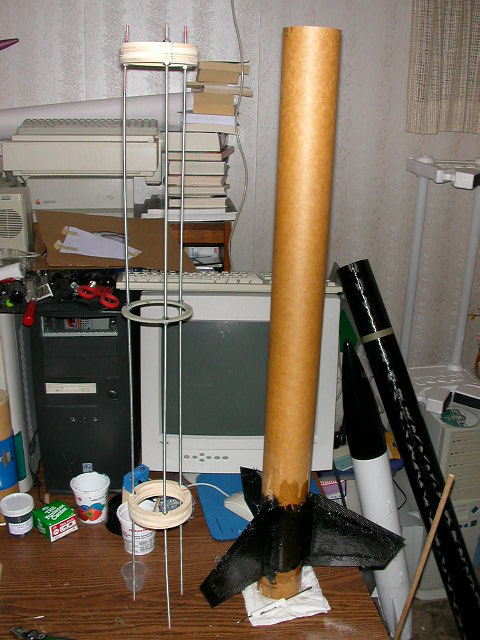

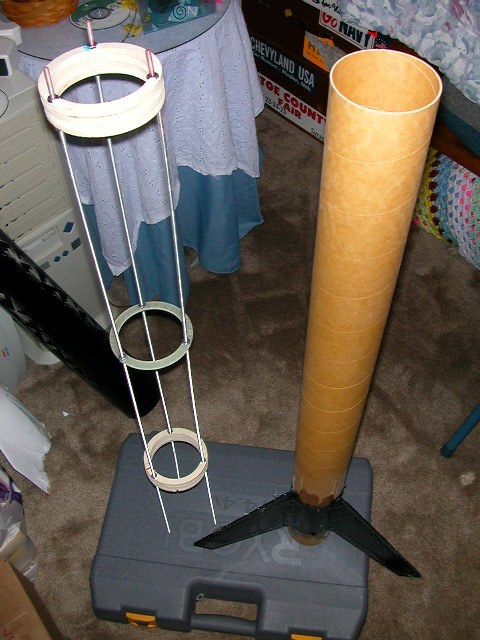

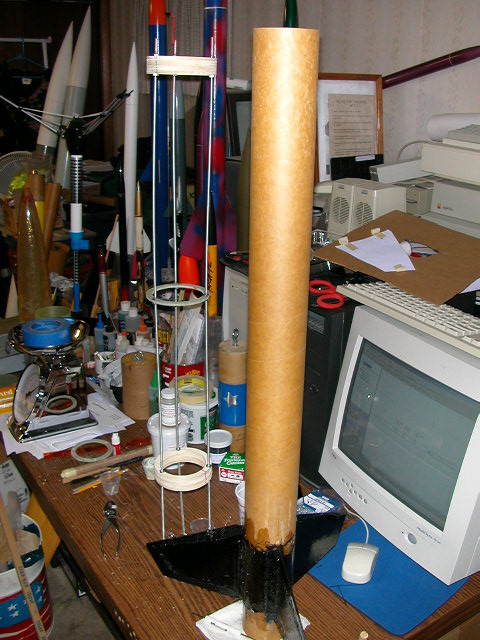

tube with centering ring assembly waiting to be joined together
|
CRs are Giant Leap 0.5" thick for rail guide attachment
|
...with G10 in middle
|
entire assembly epoxied into airframe
|
filled with foam waiting for fillet epoxy
|
business end with G10 aft ring
|

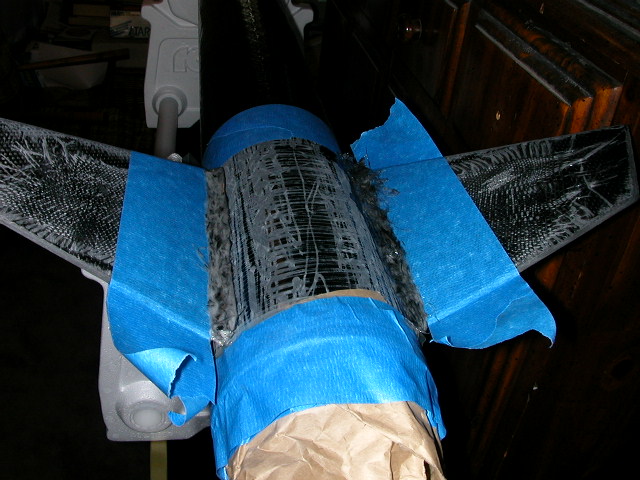

taped fillets...this needs work
|
my wife hates this
|

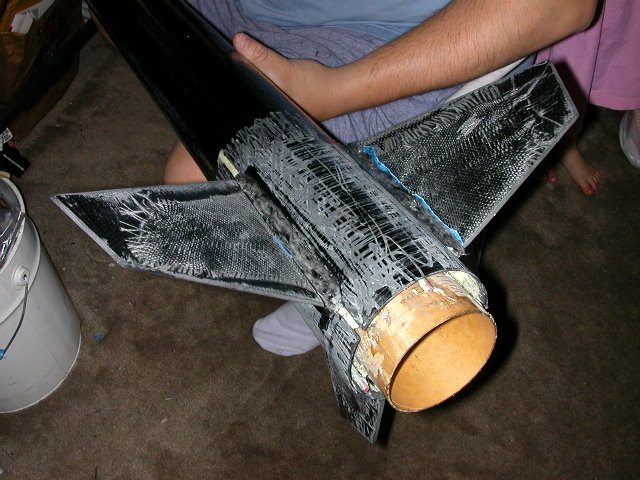

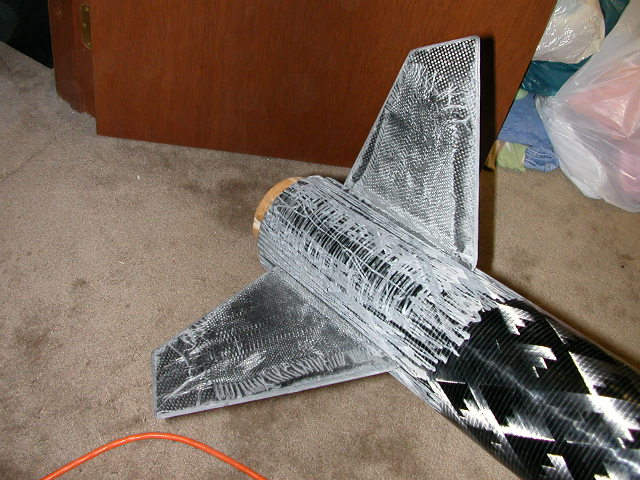

fillets with chopped CF
|

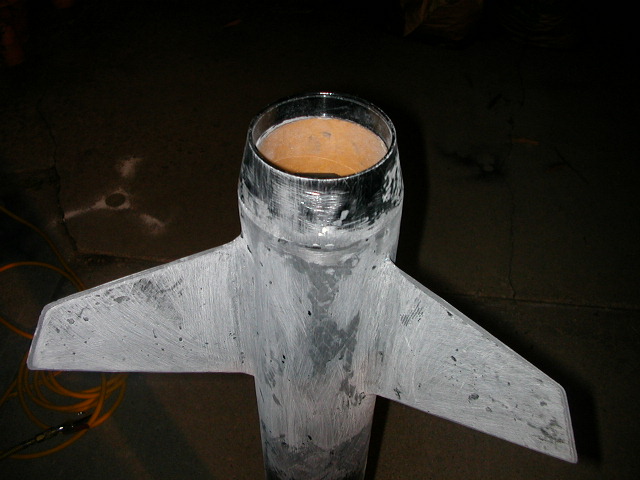

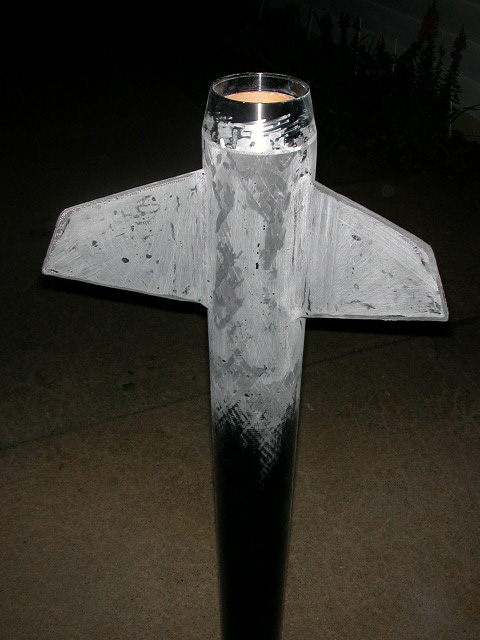

foamed and ready for GLR Slimline tailcone
|

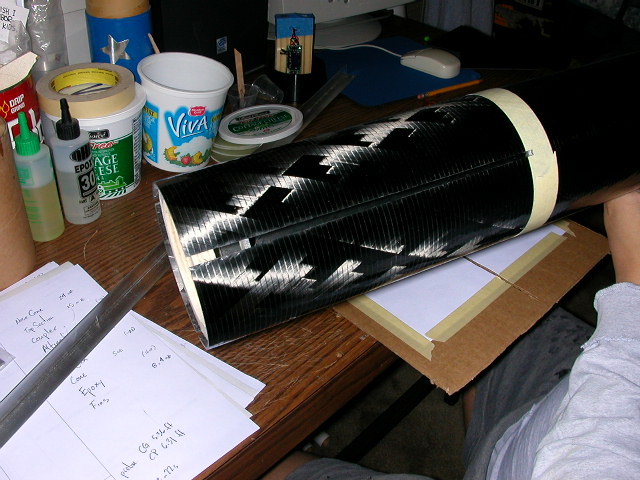

final sanding after 0.5 oz CF cloth layer
|
0.5 oz cloth finishes the surface
|

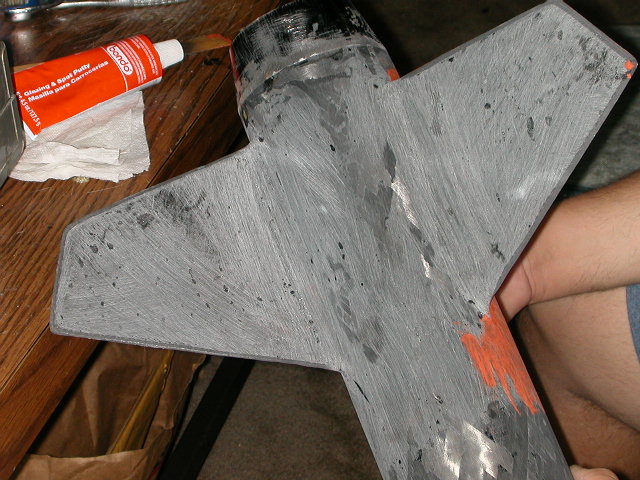

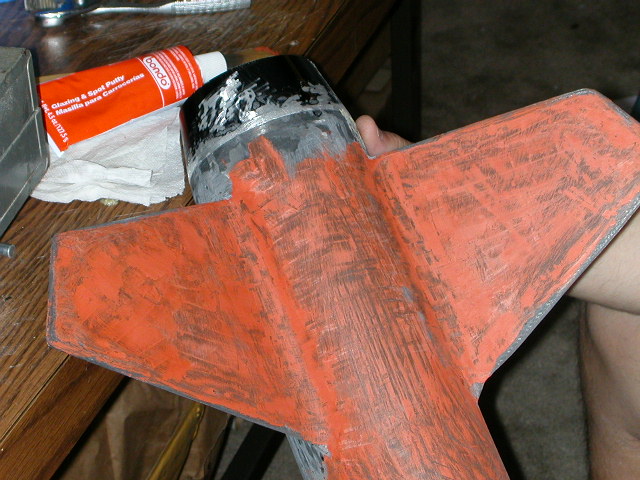

bondo glazing putty
|
sanding stinks...wear your mask!
|
Riley n' me with the primered version
|
